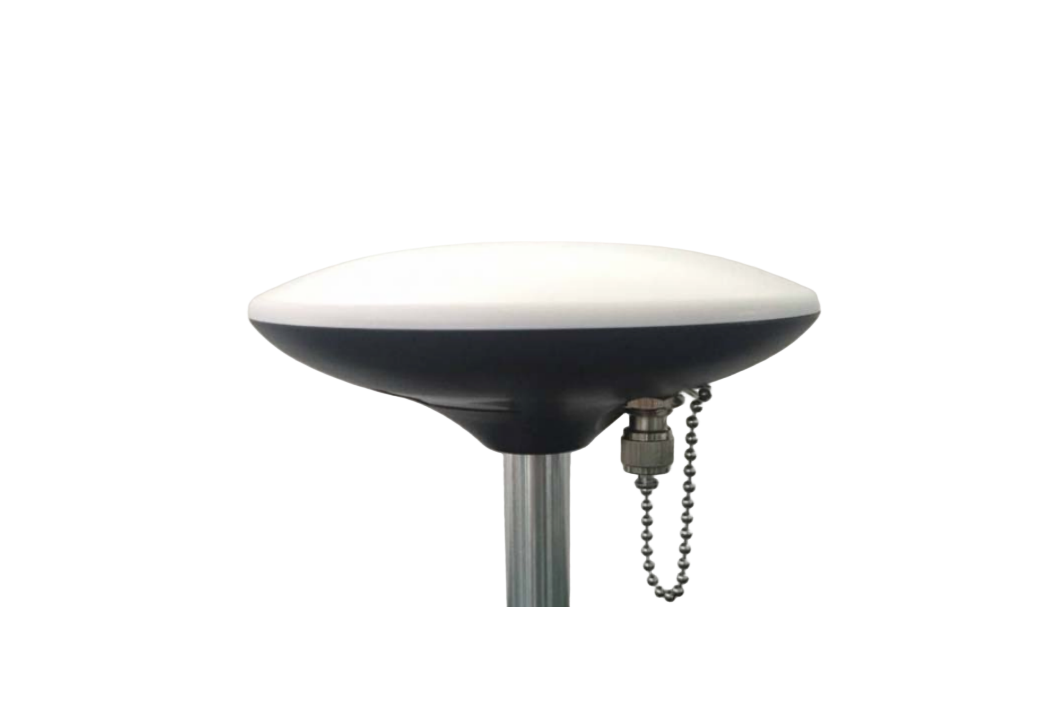

| GNSS Antenna Performance Specifications | Frequency Range Receiving Frequency Points | 1165~1285MHz & 1559~1606MHz BDS： B1I, B2I, B3I, B1C, B2a, B2b GPS： L1C/A, L1C, L2C, L2P(Y), L5 GLONASS： G1, G2, G3 Galileo： E1, E5a, E5b, E6 QZSS： L1C/A, L1C, L2C, L5, L6 NavIC： L5 SBAS： L1/L5 IRNSS: L5 |
|---|---|---|
Impedance Antenna Axial Ratio Horizontal Coverage Angle Front-to-Back Ratio Output VSWR Peak Gain Phase Center Error Noise Figure In-band Flatness Active Gain Operating Voltage Operating Current Differential Transmission Delay | 50Ω ≤3dB 360° ≥15dB ≤2 ≥5.5dBi ±2mm ≤2dB ±2dB 40±2dB 3.3~18V ≤45mA ≤5ns | |
| Structural Characteristics | Antenna Weight Antenna Dimensions Connector Type | 0.465kg Φ145×58mm TNC-K |
| Reliability | Working Temperature Storage Temperature Working Humidity Protection Grade | -45℃∽+85℃ -55℃∽+85℃ 95%(Non‑condensing) IP67 |
