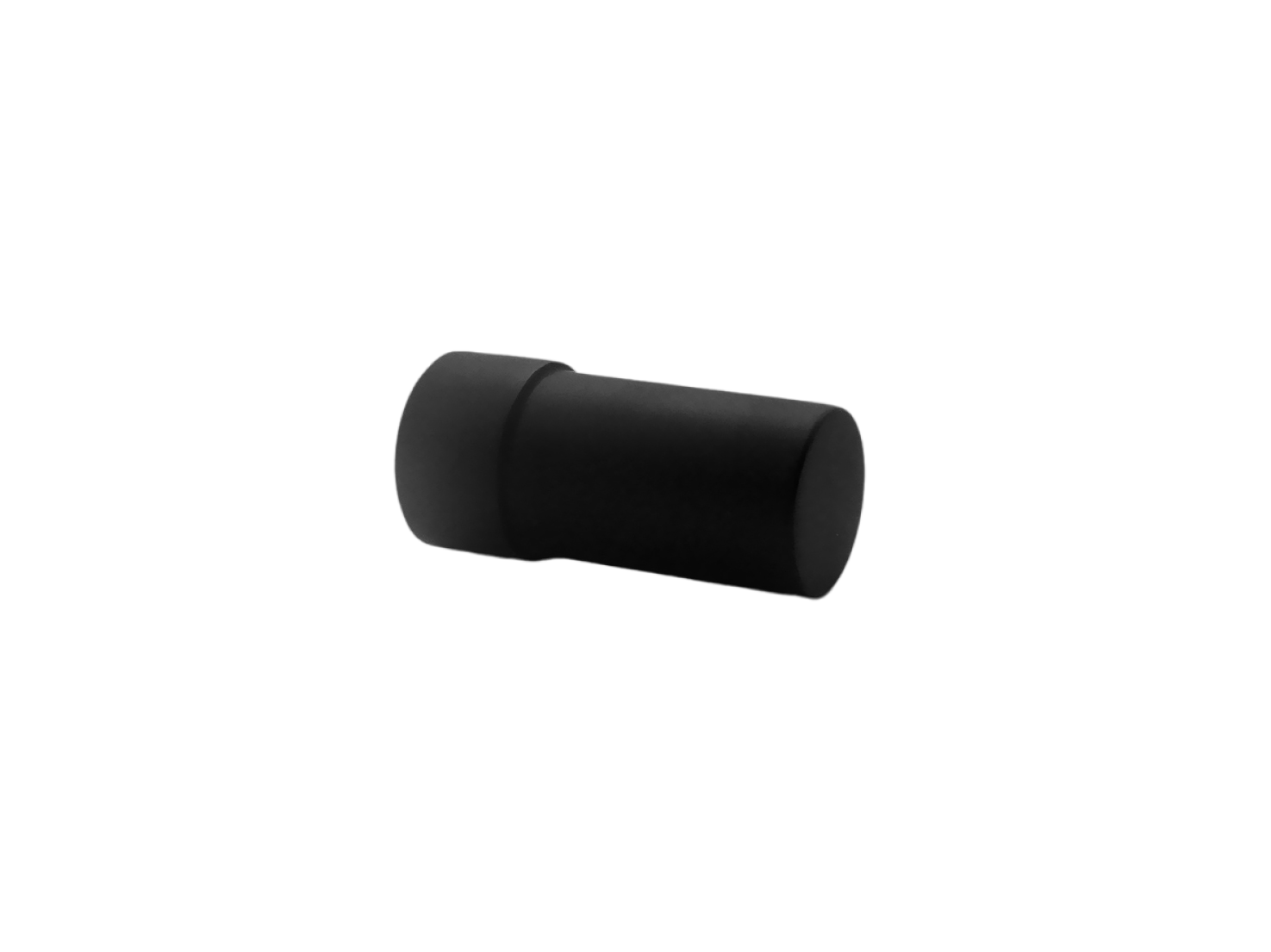

External Drone Antenna | HY-A602-E
External Drone Antenna | HY-A602-E
Features
Small phase center error, high measurement accuracy
High gain, wide beam pattern, excellent signal reception performance
Small size, light weight, low power consumption, and more convenient to use
Wide application range, fast switching and operation


Specification parameters
Technical Specifications
Accessories List
Structural Dimensions

GNSS Antenna Performance Specifications

Frequency Range

Receiving Frequency Points


Impedance

Antenna Axial Ratio

Horizontal Coverage Angle

Output VSWR

Peak Gain

Phase Center Error

Noise Figure

In-band Flatness

Active Gain

Operating Voltage

Operating Current

1207~1278MHz & 1559~1605MHz

BDS: B1 ,B2, B3

GPS: L1 , L2

GLONASS: G1, G2

50Ω

≤3dB

360°

≤2

3dBi

±2mm

≤2dB

±2dB

35±2dB

3~5V

≤20mA

Structural Characteristics

Antenna Weight

Antenna Size

Connector Type

≤25g

57*Φ28mm

Reliability

 Operating Temperature

Storage Temperature

Operating Humidity

-40℃∽+70℃

-45℃∽+70℃

95%(Non‑condensing)

Application Scenarios
In large-scale light shows and theme park performances, hundreds to thousands of drones are required to perform complex formation movements synchronously, which demands extremely high communication latency and anti-interference capabilities. With anti-interference antennas integrated with time-division duplex, cognitive radio or distributed ad-hoc network technologies, interference from temporary wireless devices (such as audience mobile phones and stage lighting control equipment) can be dynamically avoided, ensuring millisecond-level command transmission.
Learn more
无人机行业应用2 .png
For drone aerial photography, stable transmission of high-definition video and accurate reception of control commands are required. Anti-interference antennas, through adaptive beamforming, multi-antenna or frequency hopping technologies, effectively suppress interferences such as multipath reflection and spectrum congestion, ensuring smooth and uninterrupted video transmission as well as flight safety.
Learn more
Performance UAV
Aerial Photography Drone
