Technical specifications

Technical specification

Parts list

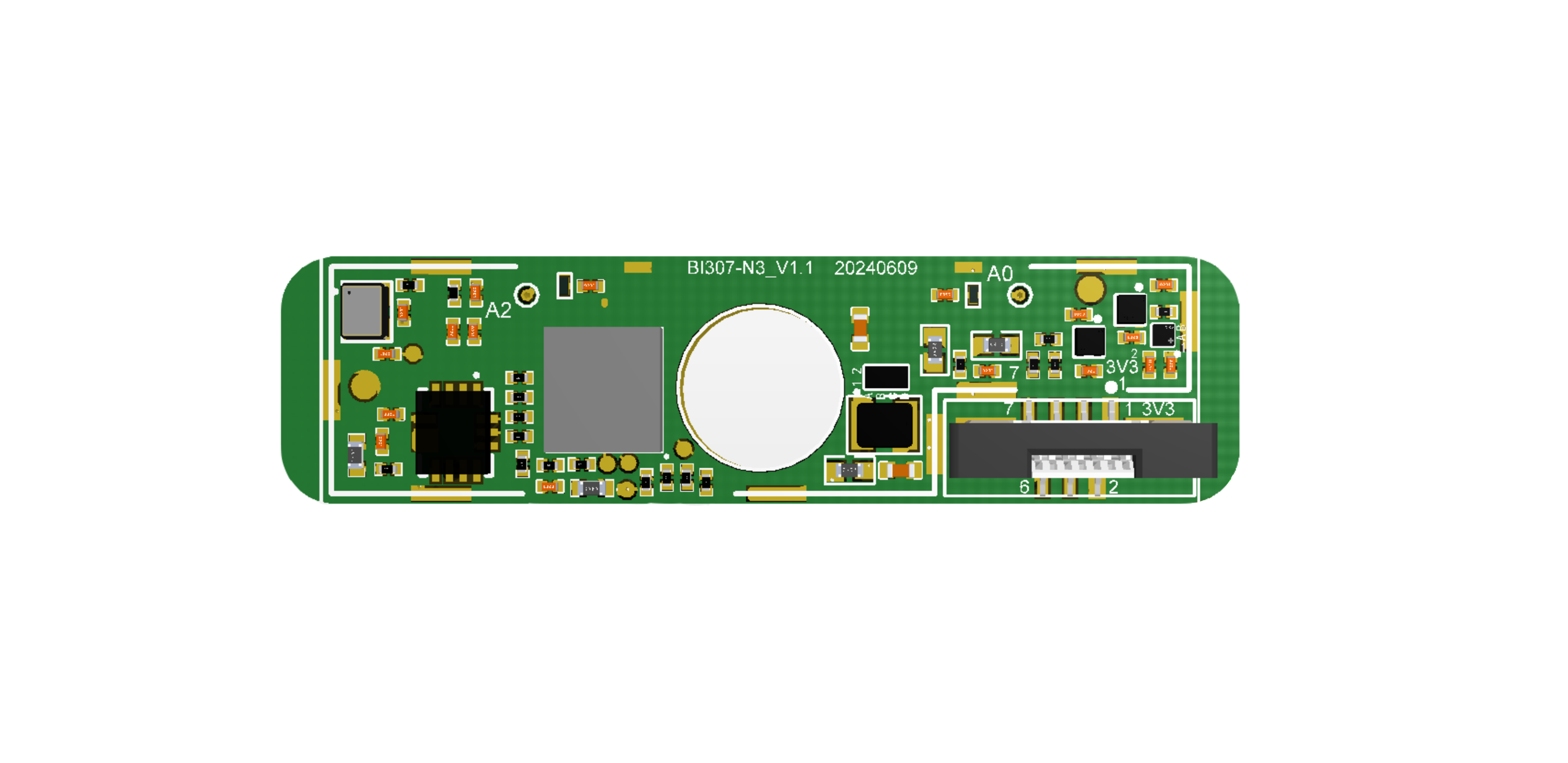

structure size

Physical specification

Structure size	Pointing function Directional positioning technique Point to the datagram point	Absolute direction UWB and IMU joint positioning technology 100 Hz
Hardware specification	UWB standard CH9 Output power Input voltage Working peak current Working average current Resting current	802.15.4z The center frequency is 7987.2MHz and the bandwidth is 500MHz -41.3dBm/MHz (adjustable) DC 3.3V(±5%) ≦80mA ≦9mA ≦60uA
Antenna parameter	UWB antenna type	Onboard array antenna
Performance parameter	Ranging accuracy Angle measurement accuracy Communication distance Communication function	±5cm(1σ), distance between the two module main antennas ±3° (1σ) 20m Support data transparent transmission mode (need to customize private protocol)
Reliability	Operating temperature Storage temperature Working humidity Antistatic class	-20℃ ~+60℃ -40℃ to +85℃ 95% (non-condensing) ESD (Human body model) 2000V
dimension weight	35mm9mm6.9mm ≤3g

Structure size

Pointing function

Directional positioning technique

Point to the datagram point

Absolute direction

UWB and IMU joint positioning technology

100 Hz

Hardware specification

UWB standard

CH9

Output power

Input voltage

Working peak current

Working average current

Resting current

802.15.4z

The center frequency is 7987.2MHz and the bandwidth is 500MHz

-41.3dBm/MHz (adjustable)

DC 3.3V(±5%)

≦80mA

≦9mA

≦60uA

Antenna parameter

UWB antenna type

Onboard array antenna

Performance parameter

Ranging accuracy

Angle measurement accuracy

Communication distance

Communication function

±5cm(1σ), distance between the two module main antennas

±3° (1σ)

20m

Support data transparent transmission mode (need to customize private protocol)

Reliability

Operating temperature

Storage temperature

Working humidity

Antistatic class

-20℃ ~+60℃

-40℃ to +85℃

95% (non-condensing)

ESD (Human body model) 2000V

dimension

weight

35mm*9mm*6.9mm

≤3g

Applications

Any device in a smart home, such as air conditioners, lights, and speakers, can be attached with a receiver. When the remote control is aimed at these devices, it can perform various operations such as turning them on and off, adjusting the temperature, and adjusting the brightness, achieving a more intelligent and convenient home experience.

learn more

The solution also supports a variety of document operations and one-click annotation and correction functions to meet the needs of various scenarios such as meetings, lectures, and commercial scenarios.

learn more

Traditional wireless presenters can only turn pages, but this remote control can not only mark but also switch multimedia. It also supports ultra-long-distance remote control, which can meet the needs of large scenes and improve work efficiency.

learn more

This remote control also supports ultra-online teaching, meetings and other scenario requirements, easily realizing intelligent office needs.

learn more
