Specifications

Technical specifications

Parts List

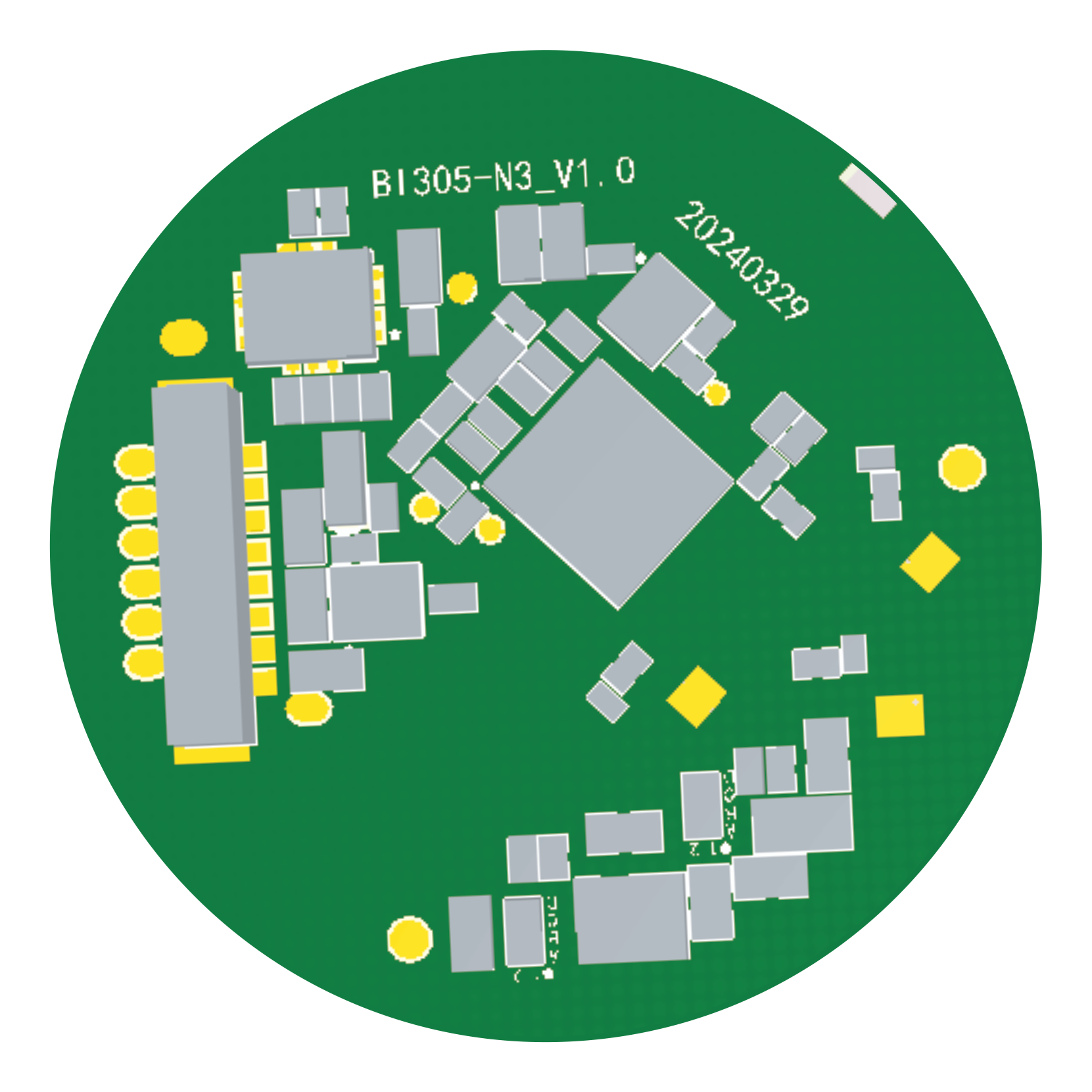

structure size

Physical parameters	Dimensions Weight Mounting holes Interfaces Power supply LED indicator	25mm 6g See the structural design diagram 2 GPIO, UART_TXD, UART_RXD, GND, VDD3V3 DC 3.3V±5% 1 red and green dual-color indicator light
Power consumption parameters	Average current Peak current	75mA/5V@80Hz 660mA/5V@80Hz
Antenna parameters	UWB antenna type Bluetooth antenna type	Onboard array antenna Onboard ceramic antenna
Performance Parameters	UWB communication distance Angle measurement accuracy Distance measurement accuracy Measurement frequency Communication function UWB standard	100 meters, no interference, no obstruction +0.5°(1) N3 +2.5°(10) Q3 +5cm(1o), ranging between two module main antennas 80Hz(max) Support data transparent transmission mode IEEE 802.15.4z
reliability	Working temperature Storage temperature Working humidity Antistatic level	-40°C-+75°C -40°C~+85°C 95% (non-condensing) IEC61000-4-2 standard level 4

Physical parameters

Dimensions

Weight

Mounting holes

Interfaces

Power supply

LED indicator

25mm

See the structural design diagram

2 GPIO, UART_TXD, UART_RXD, GND, VDD3V3

DC 3.3V±5%

1 red and green dual-color indicator light

Power consumption parameters

Average current

Peak current

75mA/5V@80Hz

660mA/5V@80Hz

Antenna parameters

UWB antenna type

Bluetooth antenna type

Onboard array antenna

Onboard ceramic antenna

Performance Parameters

UWB communication distance

Angle measurement accuracy

Distance measurement accuracy

Measurement frequency

Communication function

UWB standard

100 meters, no interference, no obstruction +0.5°(1) N3

+2.5°(10) Q3

+5cm(1o), ranging between two module main antennas

80Hz(max)

Support data transparent transmission mode

IEEE 802.15.4z

reliability

Working temperature

Storage temperature

Working humidity

Antistatic level

-40°C-+75°C

-40°C~+85°C

95% (non-condensing)

IEC61000-4-2 standard level 4

Applications

Any device in a smart home, such as air conditioners, lights, and speakers, can be attached with a receiver. When the remote control is aimed at these devices, it can perform various operations such as turning them on and off, adjusting the temperature, and adjusting the brightness, achieving a more intelligent and convenient home experience.

learn more

The solution also supports a variety of document operations and one-click annotation and correction functions to meet the needs of various scenarios such as meetings, lectures, and commercial scenarios.

learn more

Traditional wireless presenters can only turn pages, but this remote control can not only mark but also switch multimedia. It also supports ultra-long-distance remote control, which can meet the needs of large scenes and improve work efficiency.

learn more

This remote control also supports ultra-online teaching, meetings and other scenario requirements, easily realizing intelligent office needs.

learn more
