Specifications

Technical specifications

Parts List

structure size

Hardware specifications	UWB standard Output power Current Input voltage	802.15.4z ch9 (-13)dBm/MHz (adjustable) <=100ma 3.3V( +- 5%)
Software Specifications	Positioning mode Communication protocol	AOA+TOF
Antenna parameters	Positioning frequency UWB antenna Bluetooth antenna	0.1~10HZ adjustable Can be used with IPEX1 external antenna Built-in ceramic antenna
reliability	Working temperature Storage stability Working humidity Antistatic level	-30℃ ~+75℃ -40℃ ~+85℃ 95% (non-condensing) None

Hardware specifications

UWB standard

Output power

Current

Input voltage

802.15.4z ch9

(-13)dBm/MHz (adjustable)

<=100ma

3.3V( +- 5%)

Software Specifications

Positioning mode

Communication protocol

AOA+TOF

Antenna parameters

Positioning frequency

UWB antenna

Bluetooth antenna

0.1~10HZ adjustable

Can be used with IPEX1 external antenna

Built-in ceramic antenna

reliability

Working temperature

Storage stability

Working humidity

Antistatic level

-30℃ ~+75℃

-40℃ ~+85℃

95% (non-condensing)

None

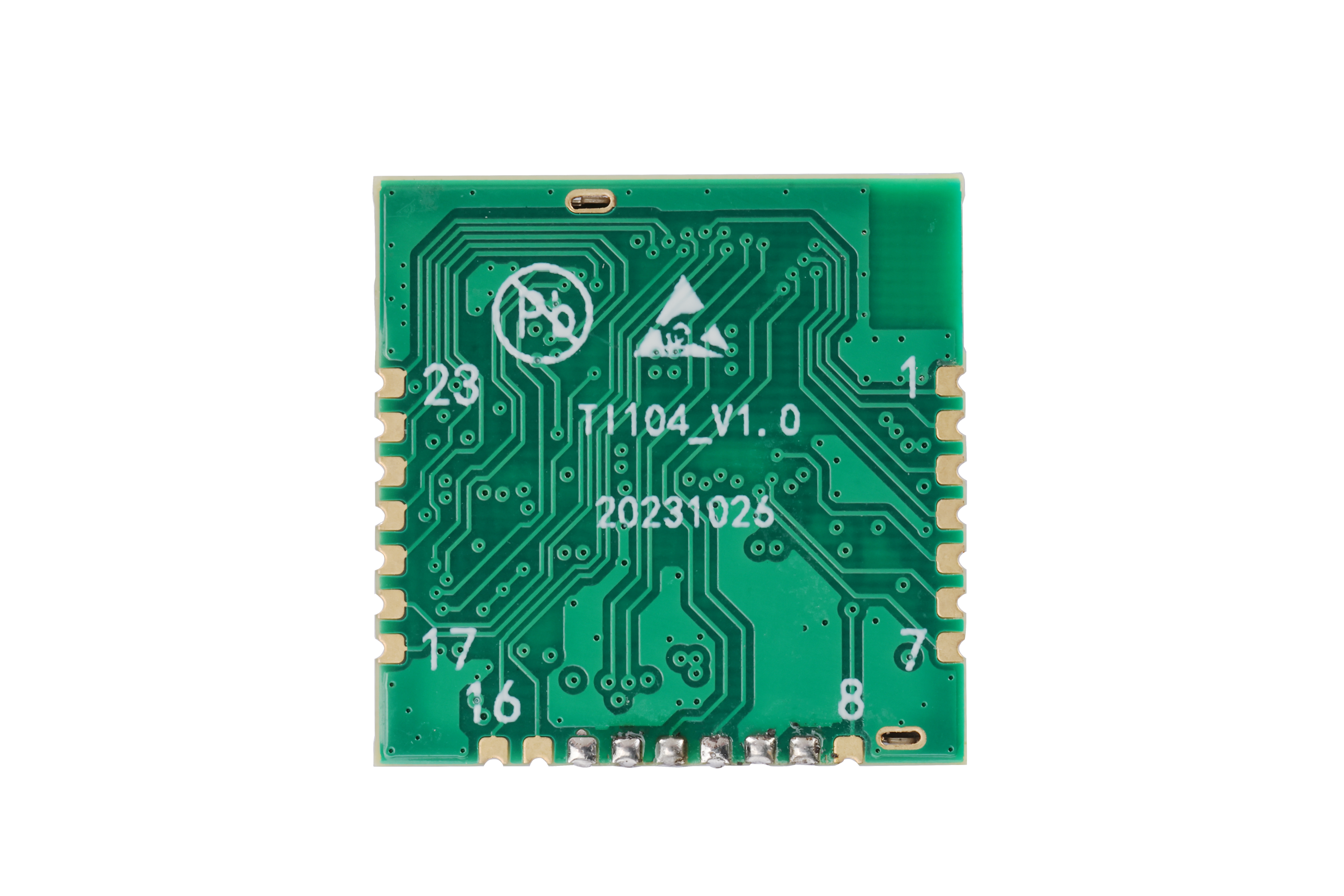

number	Pin Name	Function	describe
1	RES

Physical specifications	size	20mm 20mm3mm

Applications

The solution realizes the coordination of people and vehicles, and the collaborative positioning of vehicles and vehicles, improves production efficiency, reduces costs, improves product quality, and provides strong support for the sustainable development of enterprises.

learn more

Through the cooperation and cooperation between UWB technology, systems or equipment, it is a solution to realize human-vehicle collaboration, vehicle-vehicle collaborative positioning work, and jointly complete specific tasks or achieve specific goals.

learn more

By leveraging UWB's high-precision positioning characteristics, asset management can become more efficient, precise and secure.

learn more

Any device in a smart home, such as air conditioners, lights, speakers, etc., can be attached with a receiver. When the remote control is aimed at these devices, it can perform various operations such as turning on and off, adjusting temperature, adjusting brightness, etc., to achieve a more intelligent and convenient home experience.

learn more

Smart follow

Collaborative scene

Asset Management

Smart home
